Higher output and reduced energy consumption: NETSTAL launches the ELIOS 4500 with all-electric clamping unit

By intelligently redesigning the drive components, NETSTAL was able to significantly shorten the dry cycle time of the smallest model with 4500 kN and at the same time further reduce power consumption. Users benefit from increased productivity and lower unit costs.

4500 kN: Increased efficiency in high-performance applications

The result in figures: The drying time of the ELIOS 4500 is reduced by 0.1 seconds to a new 1.4 seconds. In relation to the Euromap dry cycle, energy consumption is reduced by 7 kW. The elimination of the hydro mechanical components for operating the toggle lever also results in an overall machine length that is 450 mm shorter. "This is an advantage for our customers that should not be underestimated, if the space saved in the production hall can be used profitably elsewhere," adds Marcel Christen.

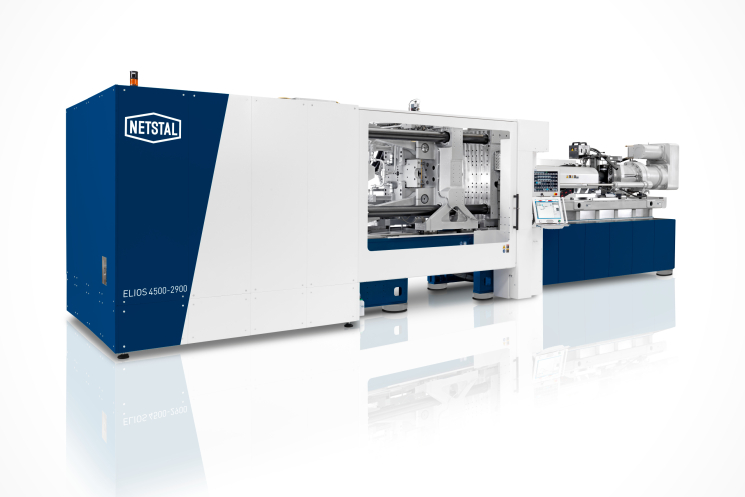

The optimized ELIOS 4500 with electrically operated toggle levers enables users to achieve striking cycle time reductions and savings in power consumption (the photo shows the previous variant).

5500 to 10000 kN: Hybrid performance for thin wall packaging

In the clamping units of the larger variants with 5500, 6500, 7500, 8800 and 10000 kN, the unique, patented drive concept for actuating the toggle lever continues to be effective. "For the higher clamping forces, the hybrid drive remains the ideal synthesis to ensure the optimum combination of speed and energy efficiency. It consists of an electrically driven double gear rack and pinion and a synchronously interacting hydro mechanical actuator that ensures the build-up of the maximum clamping force," explains Marcel Christen.

With the highest speed and the best energy efficiency on the market, the ELIOS has been delighting renowned customers worldwide since its market launch in 2016. The dry cycle time ranges between 1.4 and 2.2 seconds, depending on the model. The outstanding energy efficiency of the machines is ensured, among other things, by the recovery of kinetic energy, which is reused in the form of hydraulic energy in the overall system.
