WITTMANN BATTENFELD wins award for its condition monitoring system

Condition monitoring systems have already been used in large-scale plants for many years to anticipate and prevent production failures and optimize time-consuming servicing schedules. Recent progress in sensor technology and the increasing availability of high-speed data transfer networks now make such systems an interesting option for injection molding machines, too. When used in injection molding machines, the system monitors the condition of individual machine components to optimize their availability and efficiency and to keep them on this optimal level. The system detects malfunctions before they cause a machine breakdown and thus enables proactive scheduling of servicing sessions. In this way, costs can be minimized with a simultaneous increase in productivity.

from the left: Udo Rath, Regional Sales Manager WITTMANN BATTENFELD and Bogdan Zabrzewsky, Managing Director of WITTMANN BATTENFELD Polska, with medals and certificates

The heart of the condition monitoring system is the CMS computer. This computer is part of a production control system. It communicates with the injection molding machines and collects and saves the measurement data for possible later backtracking. A CMS control center can monitor up to 50 machines simultaneously and pass on early warnings to the corporate maintenance staff by email. Besides current status information, the software also delivers trends indicating changes in functional values, which provide the basis for decision-making by maintenance staff.

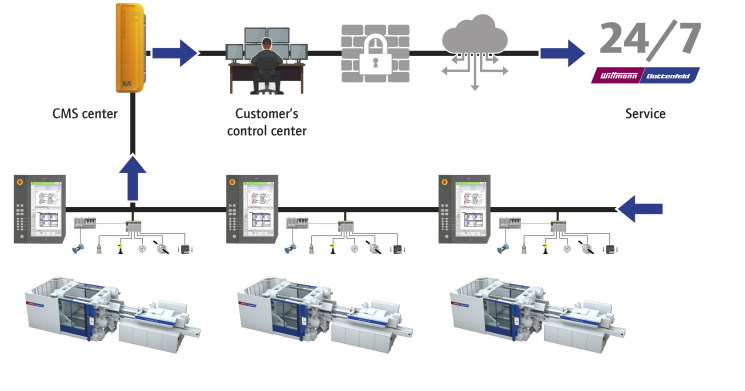

Overview of CMS control center

At this year’s Plastpol, the condition monitoring system was demonstrated on a high-speed machine for the packaging industry, an EcoPower Xpress 160/1100+. On this machine, a lid made of PP (supplied by Borealis, Austria) was manufactured with a 4-cavity mold, using a high-speed IML system with a W837 pro side-entry robot from WITTMANN.
