Production safety in compliance with CE certification: Secure your injection mould during handling with the STRACK Z6041 safety hook from VMM s.r.o.

Operating Principle of the STRACK Z6041 Safety Hook

STRACK Z6041 is a mechanical locking component that locks both mould halves and prevents them from opening accidentally. The hook mechanically engages with a counterpart on the other mould half, creating a secure lock. It can only be released after the mechanism has been manually unlocked. This solution increases safety when handling the tool while also protecting the mould against damage caused by uncontrolled movement of its halves.

When to Use a Safety Hook for Injection Moulds

The STRACK Z6041 safety hook is used primarily in situations where the mould is not clamped in the machine and there is a risk of it opening. Typical cases include:

• transporting the injection mould between workstations
• handling with a crane or forklift
• installing and removing the mould from the machine
• servicing or maintenance of the tool
• storing the mould outside the production process

In these situations, the hook ensures that both mould halves remain securely locked.

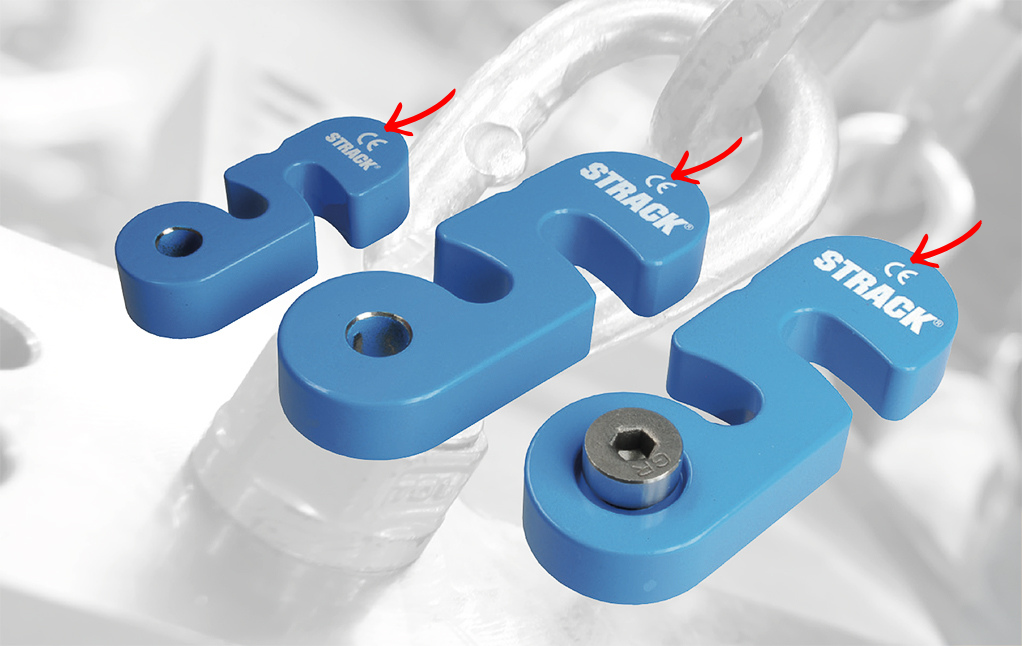

Design of the STRACK Z6041 Safety Hook

The STRACK Z6041 safety hook is designed as a robust mechanical component intended for demanding industrial conditions. It is made from a strong material and designed to withstand mechanical loads during mould handling.

Several model variants are available, differing in dimensions and load capacity. The individual versions are adapted to different injection mould sizes and different installation situations.

Installation and Safety Guidelines

When installing the STRACK Z6041 safety hook, the manufacturer's installation instructions must be followed, and the hook and its counterpart must be correctly positioned on both mould halves. It is very easy to integrate into the mould design.

Before commissioning, operators should be familiarised with the operation of the locking mechanism and the safety rules for its use. We recommend that the operating instructions remain available to users throughout the component's service life.

Benefits of the STRACK Z6041 Safety Hook for Your Injection Moulds

Using a safety hook offers several practical benefits when handling injection moulds. It improves workplace safety, protects the mould against damage and also simplifies tool logistics in production or the toolroom. CE certification is another significant benefit, confirming the suitability of this safety component for professional industrial use. For employers, it also represents an important benefit in terms of responsible operation and reducing risks in the event of problems associated with the mould coming loose or possible injury during handling.

CE Certification of the STRACK Z6041 Safety Hook

When handling moulds, even a slight rotation or accidental opening can cause serious damage to the tool or compromise worker safety. The STRACK Z6041 safety hook provides a simple and reliable solution that secures the mould during handling and helps prevent unplanned incidents.

Do not underestimate safety when handling moulds. Choose the STRACK Z6041 safety hook and ensure your tools are reliably locked.
