High quality hole machining with five axes

High quality hole machining with five axes

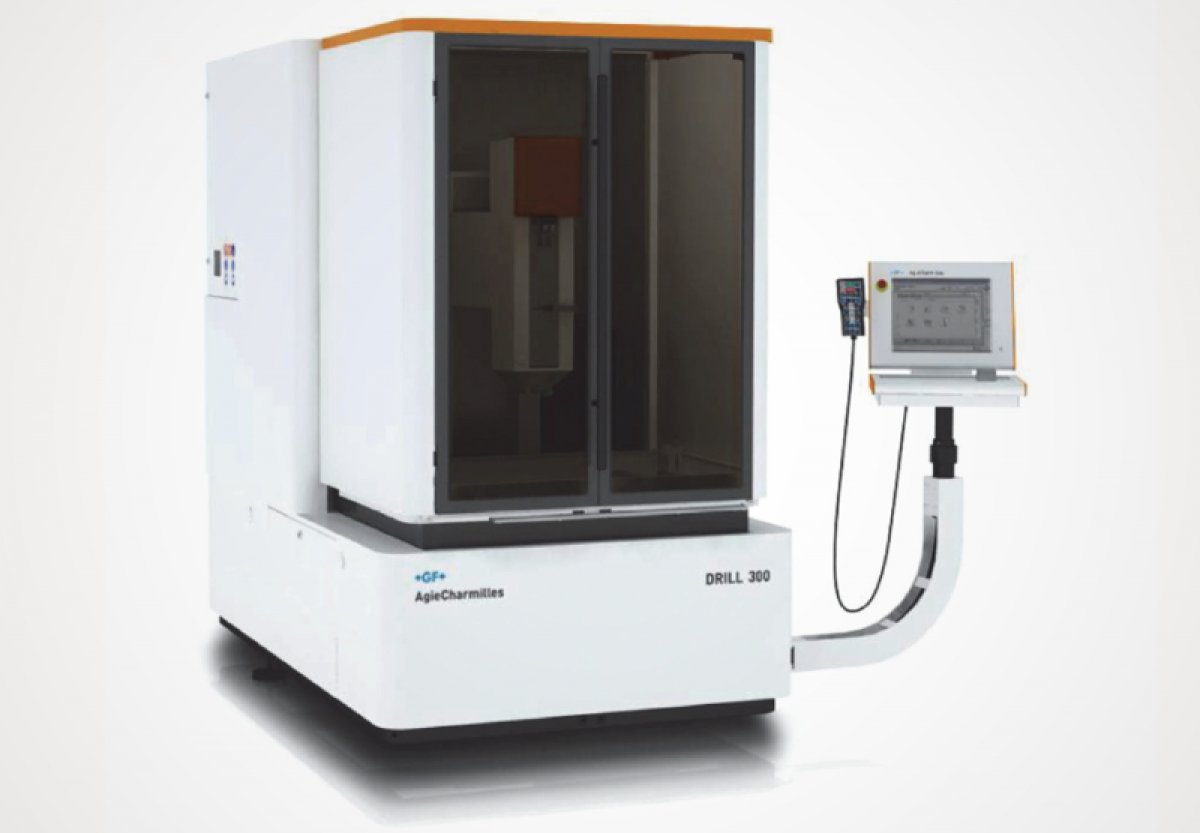

The Swiss company GF Machinining Solutions responding to the increased demands of the market introduced a new range of powerful EDM CNC punching machines labeled 300 DRILL / DRILL 300B.

It is a winning solution for any kind of hole machining with electrically conductive material like Inconel, titanium, steel and carbide in the aerospace, energy, cutting tools and mold and die industries.

High quality hole machining with five axes

Seven axis CNC

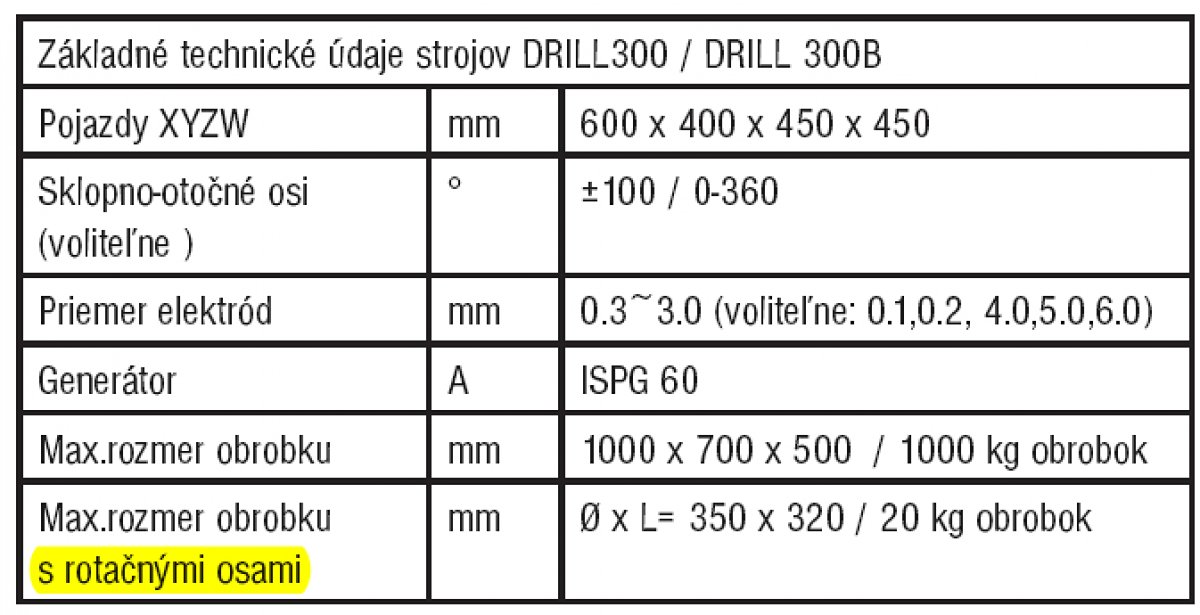

The standard configuration for the CNC axes are X,Y,Z,and W, with optional tilting/rotary table and tilting head. The DRILL 300 can control up to seven axes, the machine can drill any holes in a inclined surface with single setup, no more need for additional fixtures and spending time for workpiece alignment during multi-setup.

Minimum recast layer
Recast layer has significant influence on the fatigue lifetime and safety of the components in a jet engine. The DRILL 300 digital generator allows the finest pulse duration in a few microseconds. When “quality” technology is used, the recast layer can be dramatically reduced to a few microns. and the fatigue lifetime of the components can be increased accordingly.

  • The winning solution------for cooling holes machining in aerospace
  • High speed drilling ------ increasing the customer’s productivity
  • Fine hole quality ------ The new standard in hole EDM drilling
  • Powerful control------ to manage sophisticated hole machining
  • Lower operating cost------ saving money for customers
  • High degree of autonomy and automation------ for maximizing productivity

More information »

  • autor:
  • Agie Charmilles, s.r.o.
  • GF Machining Solutions s.r.o.

    GF Machining Solutions s.r.o.

    International company engaged in the sale of machines suitable for making molds and tools, production of precision parts, we provide solutions for clamping and automation. We offer machines for electro discharge machining, high speed machining centers, clamping systems, palletizing, machine service, original spare parts and consumables.
