Sell: Extruder VRC 601 edrive

13.09.2024 | Advertisement ID 18725

We offer for sale:

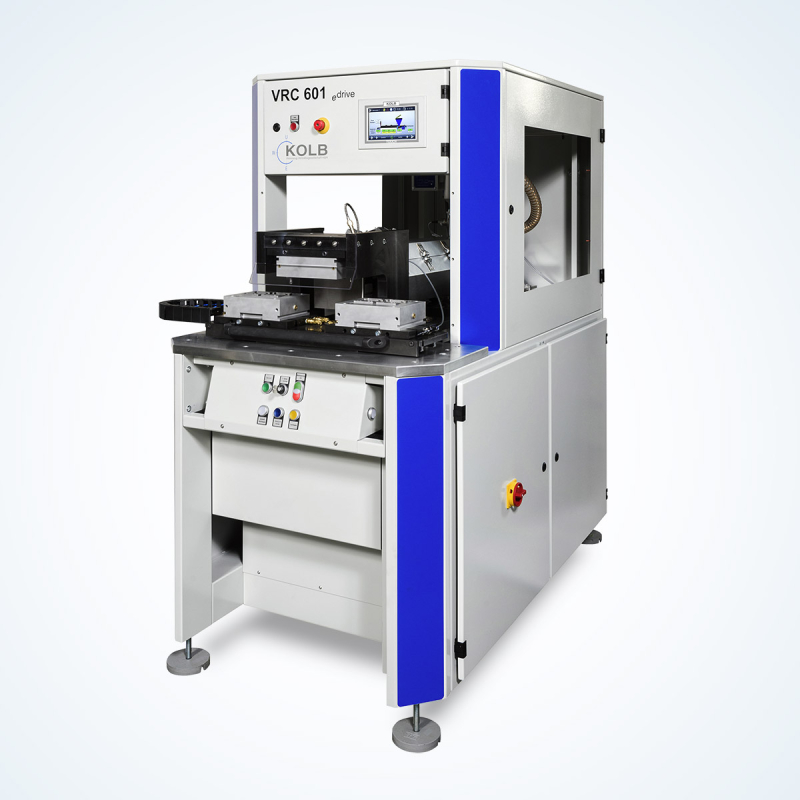

MELTING MACHINE VRC 601 edrive:
- processing of cutting materials such as polypropylene, polyurethane, copolyamide, copolyester, santoprene, TPE, Elastollan, Hytrel
- direct melt single screw extruder
- 3 heating zones
- the compact design of this machine with a sliding table
- heating time is less than 20 minutes
- approx. 20% lower energy consumption
- electromotive tool clamping increases energy efficiency
- diameter of the extrusion extruder 32 mm
- pressing pressure 250 bar - pressing temperature 0 – 280 °C
- electrical supply 3x (208-480V), 50/60Hz, 3.5kVA
- pneumatic supply 6 bar,
- dry and without oil,
- dimensions: 1000 x 1500 x 1750 mm
- weight: approx. 600 kg
More information on request.
