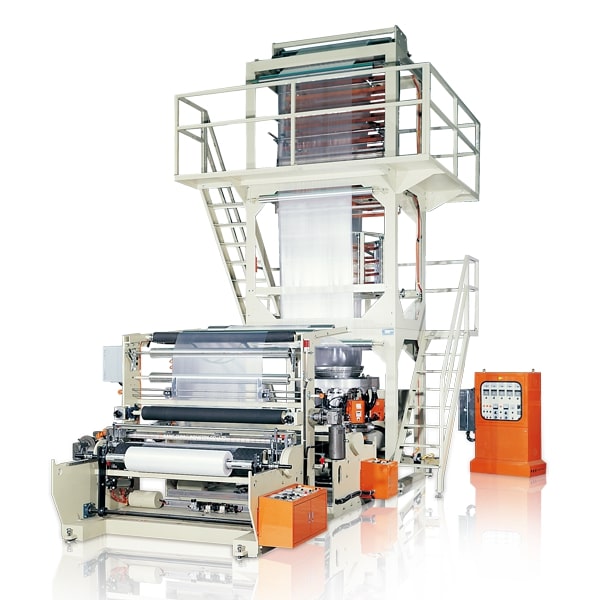

Sell: Blow molding line (extruder for film production), model KML - 65
BASIC INFORMATION Input material: LDPE, LLDPE, HDPE Film thickness range: 0.01 - 0.25 mm Film width range: max. 1600 mm Max. machine power: max. 110 kg/h Total energy consumption: 69.6 kW TECHNICAL SPECIFICATION OF THE BASIC COMPONENTS OF THE EXTRUDER Extruder: diameter 65 mm D/P ratio: 28: 1 Number of heating zones: 4 Heating element input: 14.7 kW Motor: 30 kW, frequency converter control Head (reinforced head plating): diameter 350 mm Cooling ring: diameter 400 mm Heating input: 14.4 kW Number of heating zones: 2 Cooling fan: 3.5 kW Pneumatic exhaust Exhaust width: 1600 mm Working width: 1500 mm Motor: AC0, 7kW (frequency converter control) Towing speed: max. 45 m/min. Reel: manual with manual roll change, width 1600 mm Working width: 1500 mm ADDITIONAL EQUIPMENT INCLUDED IN THE PRICE OF THE MACHINE: Rotary head system Second reel manual width 1600 mm Pneumatic winding rods 4 pcs width 1600 mm Equipment for winding cuts in the production of flat foils Dosing pump raw materials Bi-metallization and auger extension 32: 1 (for working with regranulate) Change of two reels to automatic roll exchange system CH-1000 T CORONA foil surface treatment (CE) 1600 mm Automatic foil tension control Automatic paint dispenser Hot knife
